Additional information
Material | Recycled Plastic |
---|

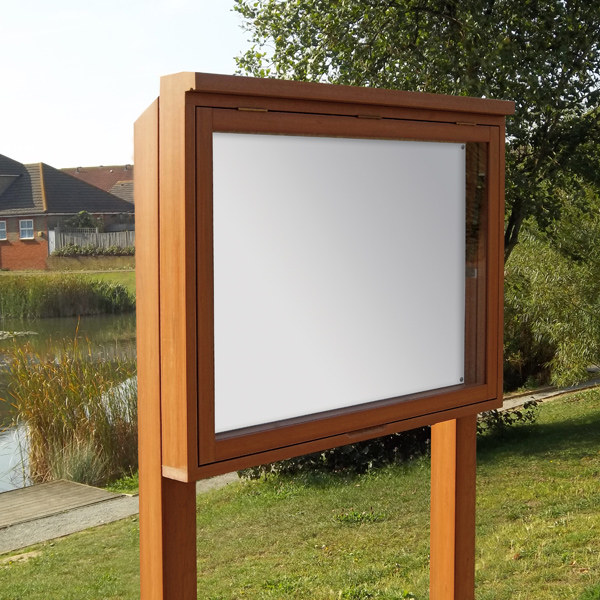

Enhance your location, as well as providing information with post mounted notice boards.
See ExamplesSynthetic wood construction made from 100% recycled UK waste and 100% recyclable at end of life.
Your choice of Notice Board will be determined by the below.
There are 5 simple steps to building your own bespoke notice boards, please see below.

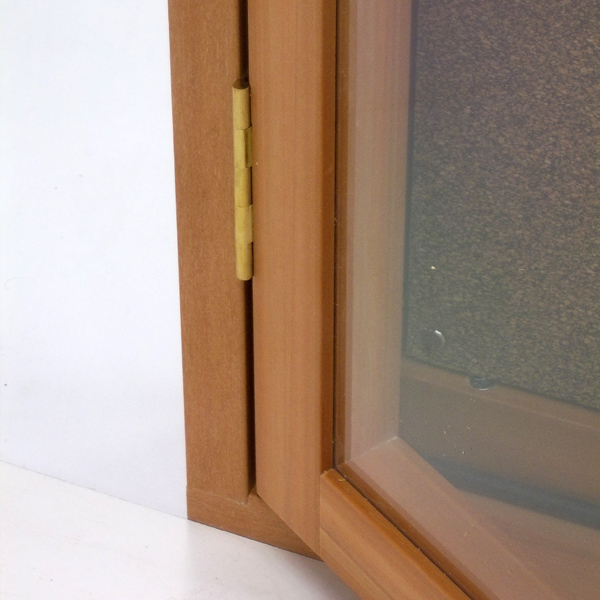

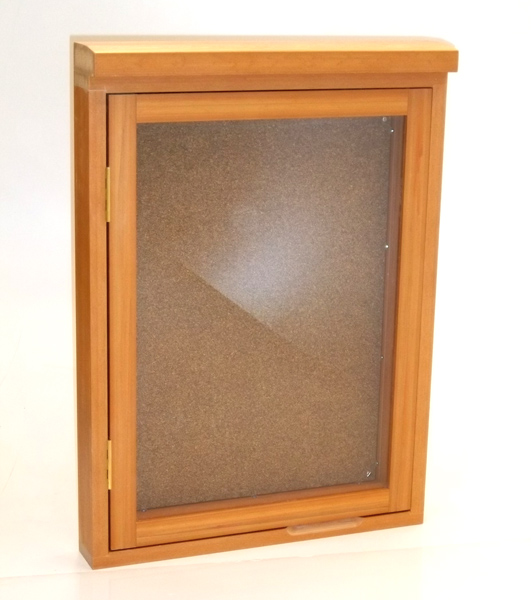

Door are fitted with brass hinges and attached using counter sunk brass machine screws and can either be fitted with free opening doors or lockable with cam locks for added security. The real beauty of our systems and means of production is that you can have the combination you really want.

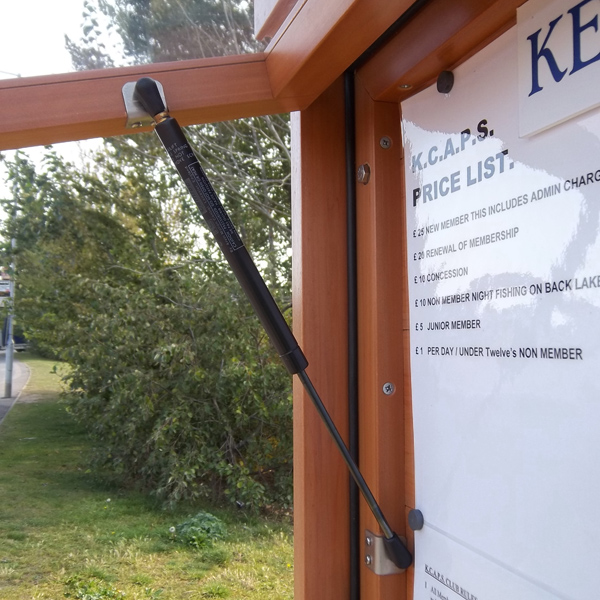

Single or double opening available on all panels and hung side or top up to 140cm over only side available.
Height | Standard Width | Viewing Area | A4 Capacity |
---|---|---|---|
100cm | 80cm | 1 Door - Viewing area 84cm x 64cm | 9 |
100cm | 100cm | 1 Door - Viewing area 84cm x 84cm | 12 |
100cm | 120cm | 1 Door Top Hung - Viewing area 84cm x 104cm | 12 (with margin) |
100cm | 120cm | 2 Door - Viewing area 84cm x 46.5cm | 12 (with margin) |
100cm | 140cm | 1 Door Top Hung - Viewing area 84cm x 124cm | 15 |
100cm | 140cm | 2 Door - Viewing area 84cm x 56.5cm | 15 |
100cm | 160cm | 2 Door Only - Viewing area 84cm x 66.5cm | 18 |
100cm | 180cm | 2/3 Doors Only - Viewing area 84cm x 76.5cm | 18 |
100cm | 200cm | 2/3 Doors Only - Viewing area 84cm x 86.5cm | 24 |
Headboards are designed bespoke to your requirements and are 5mm aluminium back plates with 2mm text.
Using CAD we can programme any shape of headboard, artwork, borders, text, font style etc. The design is then sent to you via email for approval.
We are happy to adapt your designs or artwork which we can accept in DWG or DXF formats. Artwork to be printed should ideally be sent in high resolution, a minimum of 300 DPI.
Posts are manufactured from 6.25mm wall aluminium tube with a 6mm connecting bracket and 3 designs. All posts can be highlighted in enamel paint hand painted or powder coated ie gold/silver to match highlights on headboard.
All designs can be fitted with shear technology. Designed along with the highways agency to shear on impact if hit by a vehicle.
75cm x 75xm
250cm A/O length
90cm
250cm A/O length
90cm top half, 140cm bottom half (mid collar profile)
250cm A/O length
Now you've seen how we create our Notice Boards it's time to build your own! Click on the button below to start your configuration.
Configure YoursShould you require additional information or further assistance please give us a call on 0115 9430155 or fill in our contact form.
